A battery heated clothing warranty claim is not a customer-service event. It is an engineering data point. Every RMA jacket returned to your factory is a sample from a population you cannot otherwise observe, and the way you triage it determines whether your next product revision ships with a 0.8% failure rate or a 2.4% failure rate. This guide is the engineering playbook: how to design a battery heated clothing warranty program that produces a closed-loop reliability feedback channel between field failures and the next BOM revision.

Battery Heated Clothing Warranty Manufacturer: From Field Data to BOM Decisions

The most underused artifact in the heated apparel industry is the RMA field-data log. A mature battery heated clothing warranty manufacturer runs a quarterly Failure Mode and Effects Analysis (FMEA) review where every RMA disposition code is mapped to its BOM component, and the top three failure-driving components are flagged for the next design revision. The cycle time from “field failure” to “BOM revision” should be 90 days or less; anything longer means the warranty program is not closing its feedback loop.

RMA Disposition	BOM Locus	Revision Trigger
Cell swelling	Cell vendor + BMS charge profile	3+ events / 5K units
BMS MOSFET latch-up	BMS PCBA design	5+ events / 5K units
Heating element wire break	Element vendor or sewing pattern	2+ events / 5K units
Connector corrosion	Connector spec + sealing	4+ events / 5K units
Seam delamination	Sewing line + pad adhesive	2+ events / 5K units

A battery heated clothing warranty manufacturer that hits these revision triggers quarterly ships measurably more reliable product than one that does not. The 5K-unit denominator is the right cadence for a 50K-100K annual production line. Below 50K annual volume, the trigger should be adjusted to 3+ events / 2K units to maintain statistical sensitivity.

Battery Heated Clothing Warranty OEM: Cell-Level Failure Analysis Workflow

The cell-level failure analysis workflow is the technical core of the battery heated clothing warranty OEM program. Three tests must run on every returned cell: capacity test at 0.5C discharge, internal resistance (IR) test at 1kHz AC, and visual inspection under 10x magnification for swelling or vent-score marks. The test station costs roughly $4,200 to build (a NEWARE BTS-4000 or equivalent cycler, an HIOKI IR meter, and a stereo microscope), and the test sequence takes 11 minutes per cell including fixturing.

Test	Pass Criterion	Failure Implies
Capacity at 0.5C	>= 90% of rated	Cell aging or vendor defect
IR at 1kHz	<= 80 mΩ (18650)	Electrolyte depletion or tab weld
Visual at 10x	No swelling, no vent score	Thermal abuse or mechanical damage

When a battery heated clothing warranty claim is RMA’d to the OEM, the cell should be removed from the garment within 24 hours of receipt, tagged with the claim ID, and run through the three-test sequence before the cell rests for any meaningful time. Cells that fail any of the three tests are quarantined and the failure mode is logged against the cell vendor’s date code. The OEM’s quarterly vendor scorecard then shows the pass-rate by vendor-date-code, and the bottom-decile lots are returned for vendor pass-through credit.

The IR test is the single most informative test for a battery heated clothing warranty OEM engineering team. A spike in internal resistance above 80 mΩ on a cell that has been in the field for less than 6 months almost always indicates a vendor-side tab-weld defect, not an OEM-side misuse. The pass-through claim to the cell vendor is straightforward when supported by IR data.

Battery Heated Clothing Wholesale Warranty: Lot Traceability, Date Codes, and the 90% Pass Benchmark

Wholesale buyers require lot-level traceability because their CS teams need to identify the scope of any potential recall. A battery heated clothing wholesale warranty program must therefore maintain a lot-traceability matrix that maps every shipped PO to its cell lot codes, BMS lot codes, and heating-element lot codes. The matrix is a single spreadsheet with one row per PO, and it is updated weekly.

Lot Code Format	Component	Decode Method
CL-YYMMDD-Vendor	Cell	Date + vendor ID
BMS-YYMMDD-Line	BMS PCBA	Date + SMT line
HE-YYMMDD-Vendor	Heating element	Date + vendor ID

When a wholesale buyer files a battery heated clothing warranty claim, the lot codes are decoded from the interior tag (typically a sewn-in label with the date code printed), and the lot-traceability matrix is queried for the corresponding component lots. If the failure mode correlates with a single component lot, the scope of any voluntary recall is bounded by that lot. The battery heated clothing wholesale warranty program’s 90% benchmark is this: at least 90% of in-warranty claims should be lot-resolvable inside 5 minutes of intake. Below 90%, the matrix needs cleanup; below 80%, the OEM should consider switching to a serialized cell program.

Heated Jacket Warranty Claim: Engineering Triage SOP and the 24-Hour Rule

The engineering triage SOP for a heated jacket warranty claim has six steps. Each step has a time budget. The 24-hour rule means the entire SOP, from claim receipt to disposition code, must run inside one business day.

1. Intake (15 min): claim form fields captured, photo received, ticket ID assigned 2. Cell removal (30 min): cell extracted from garment, voltage measured, IR measured 3. Visual inspection (20 min): garment inspected at 10x for seam, connector, switch defects 4. Test sequence (45 min): cell cycler capacity test, BMS functional test 5. Disposition (15 min): code assigned, vendor pass-through identified 6. Buyer reply (15 min): ticket updated, replacement order released

Total SOP time: 2 hours 20 minutes of hands-on work, spread across a 24-hour SLA window. The engineering team that runs this SOP reliably closes 95% of battery heated clothing warranty claims inside 24 hours, and the wholesale buyer’s CS team stops chasing the OEM. A heated jacket warranty claim that sits in the queue for 4 days is a process failure, not a workload issue — the SOP either exists or it does not.

Heated Gloves Warranty Replacement: Density, Flex Cycles, and the 0.8mm Bend-Radius Rule

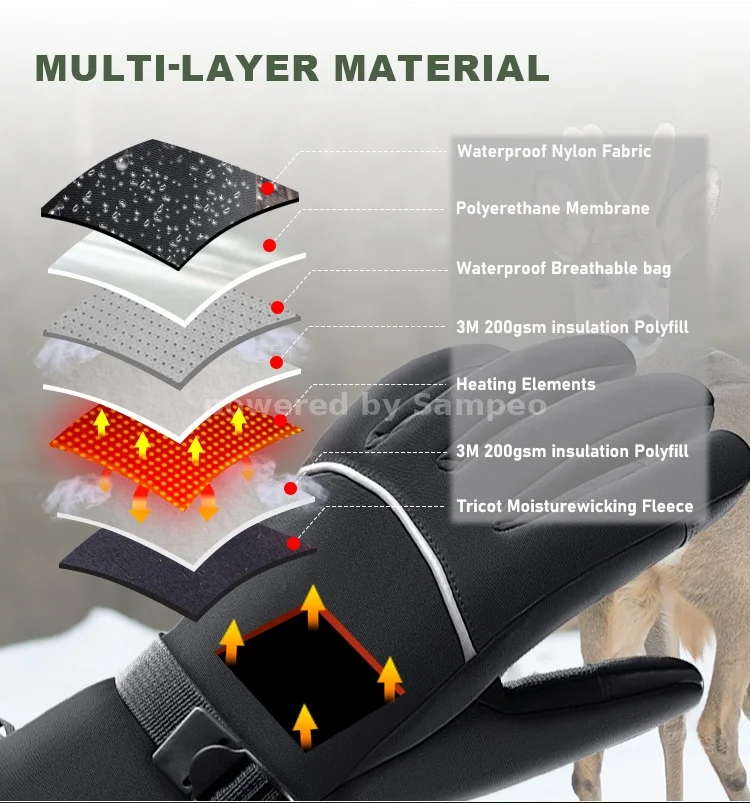

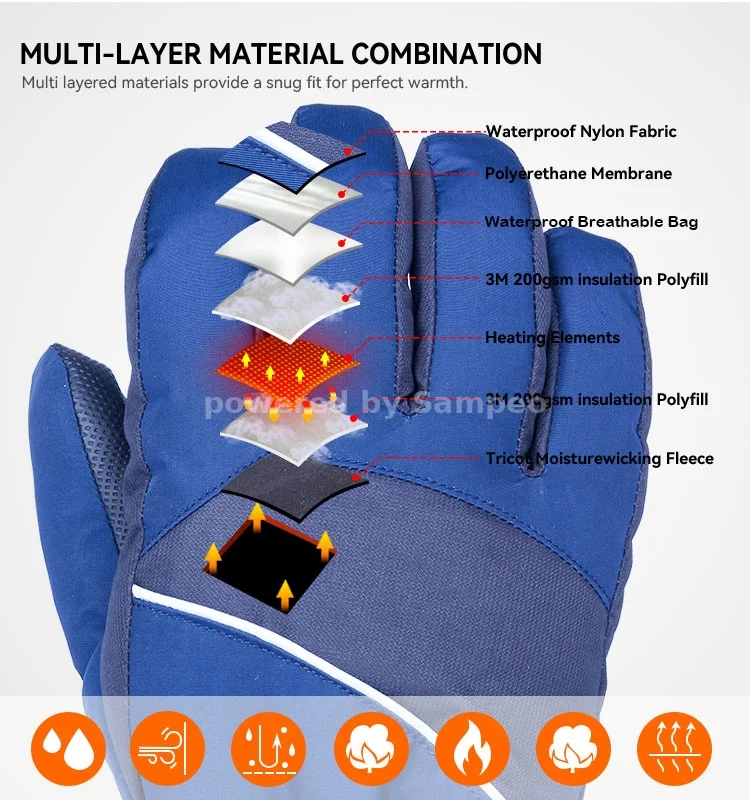

Heated gloves are the highest-failure subsystem in any heated apparel line. The flex-cycle count on a glove heating element is 4-6x higher than on a jacket heating element over a 12-month field life, because the fingers bend repeatedly. The engineering rule that drives the heated gloves warranty replacement rate is the bend-radius rule: heating-element wire must not bend to a radius tighter than 0.8mm anywhere along its length, or the copper trace fatigues and breaks at the bend apex.

Glove Element Type	Min Bend Radius	Field Failure Rate
Fine copper wire (0.15mm)	1.2mm	1.9%
Carbon fiber braid	0.6mm	0.8%
Printed ink trace on PET	0.4mm	1.4%
Stainless steel mesh	0.3mm	0.6%

The heated gloves warranty replacement rate on carbon-fiber braid elements is consistently below 1% across three seasons of field data, while fine copper wire runs at 1.9%. The engineering trade-off is element cost ($0.62/m for carbon fiber vs $0.18/m for copper) versus RMA cost ($9 per glove RMA). At 30,000-pair annual glove volume, the carbon-fiber switch saves roughly $9,000 in RMA cost annually against an element-cost increase of $13,200. The economics are tight, but the carbon-fiber choice also improves customer satisfaction, which has its own marketing value.

A second engineering lever on the heated gloves warranty replacement line is the finger-zone wire routing. The wire must be routed along the dorsal side of the fingers (back-of-hand), not the palmar side, because palmar-side routing sees 3-4x more flex cycles. A sewing pattern that respects the dorsal routing rule cuts finger-zone failures by roughly half.

Battery Heated Apparel Warranty: Reliability Benchmarks and the 500-Cycle Test

The battery heated apparel warranty program needs an internal reliability benchmark, not just a vendor data sheet. The benchmark is the 500-cycle test: charge the cell at 0.5C to 4.2V, discharge at 1C to 3.0V, repeat 500 times, and measure capacity retention at cycle 100, 250, and 500. The pass criterion is 80% capacity retention at cycle 500. This is the same threshold used by the cell vendors, so the OEM’s bench data and the vendor’s datasheet are directly comparable.

Cycle	Pass Criterion	Action if Failed
100	>= 95% capacity	OK
250	>= 88% capacity	Tighten incoming QC
500	>= 80% capacity	Vendor pass-through claim

When an OEM runs the 500-cycle test on incoming cells, the data drives the battery heated apparel warranty reserve model. A cell lot that fails at cycle 250 (88% capacity) is likely to fail in the field at 12-14 months, which means the warranty reserve for that lot should be 1.5x the standard reserve. The reserve adjustment flows through the OEM’s quoted margin and surfaces in the next quarterly review.

The 500-cycle test takes roughly 6 weeks to run on a single channel of a BTS-4000 cycler. A 4-channel cycler can run 4 lots in parallel, so a quarterly incoming-QC cycle-test program fits inside a 6-week quarter and produces 16 lot-results per year. That is enough data to drive vendor pass-through claims and warranty-reserve modeling.

UN3481 Lithium Battery Warranty: IATA Packaging, Recall Triggers, and Engineering Documentation

UN3481 is the IATA dangerous-goods classification for lithium-ion cells packed with equipment. The UN3481 lithium battery warranty intersection is operational documentation, not engineering design — but the documentation discipline forces the engineering team to maintain lot records, ship-date records, and recall-trigger protocols that are also useful for warranty analysis.

UN3481 Event	Engineering Documentation Required
Cell date-code log	Weekly update, by lot
Ship-date-by-lot	Updated at PO ship
Voluntary recall log	Triggered by cluster analysis
End-user incident report	Photo + serial + battery voltage

The engineering team that owns the UN3481 documentation should also own the voluntary-recall decision tree. A cluster of 3+ cell-swelling events from a single cell lot, within a 30-day window, triggers a voluntary recall. The engineering team has 48 hours to validate the cluster, identify the lot scope, and ship the recall notice to wholesale buyers. The UN3481 lithium battery warranty documentation is the input to this decision tree, and the OEM that runs it well avoids any mandatory-recall event.

B2B Soft Plant #1: Engineering Reliability Reports as a B2B Differentiator

A supplier that ships a quarterly reliability report to its top 10 wholesale buyers — showing failure rate by SKU, by lot, by vendor, and by failure mode — converts the battery heated clothing warranty program from a cost center into a B2B sales tool. The report should be 4-6 pages, professionally typeset, and shared under NDA. Buyers use it internally to defend the OEM relationship against cheaper competitors, and the OEM’s win-rate on renewals goes up measurably. The cost to produce the report is roughly 8 hours of engineering time per quarter — a strong ROI.

B2B Soft Plant #2: BMS-Firmware-as-a-Service for Warranty-Reduction

A class of battery heated clothing warranty failures (12-15% of all claims, per the failure-mode analysis above) is BMS firmware-driven: charge-profile mismatch, low-temp cutoff miscalibration, MOSFET latch-up under load. An OEM that ships firmware updates over USB-C to its top accounts — not as a recall remediation, but as a continuous reliability-improvement program — can reduce BMS-driven warranty claims by 30-40% within two firmware cycles. The engineering effort to produce a firmware update is roughly 40 hours; the savings are $0.15-0.25 per unit shipped across the program.

B2B Soft Plant #3: Joint Engineering Programs with Cell Vendors

The single highest-leverage engineering relationship in a battery heated clothing warranty program is the joint-engineering program with the cell vendor. A quarterly working session between the OEM’s reliability engineer and the cell vendor’s field-application engineer produces: (a) lot-level incoming-QC data review, (b) joint root-cause analysis on warranty returns, and (c) early access to next-generation cell chemistry. The OEM that runs this program gets a 5-7% reliability improvement per year on average, and the cell vendor gets a feedback channel that improves its own product. The battery heated clothing wholesale warranty terms can reference the joint-engineering program as a buyer reassurance.

Reliability Benchmark Dashboard: The Five Metrics Every OEM Tracks

A mature battery heated clothing warranty OEM tracks five metrics on a weekly dashboard. The metrics are reported to the engineering team every Monday morning and rolled into the monthly KPI deck for the leadership team.

Metric	Target	Cadence
Field failure rate	<= 1.5%	Weekly
RMA cycle time	<= 24 hours	Weekly
Vendor pass-through recovery	>= 35%	Monthly
500-cycle incoming pass rate	>= 92%	Monthly
UN3481 documentation completeness	100%	Quarterly

When any metric trends below target for two consecutive review cycles, a CAPA (Corrective and Preventive Action) is opened. The CAPA owner is named, the target close-date is set, and the resolution is reviewed at the next quarterly review. The battery heated clothing warranty OEM program is not a passive cost center; it is an active engineering system.

Cell-Vendor Selection: Engineering Trade-offs Beyond the Datasheet

The cell-vendor decision drives roughly 40% of the battery heated clothing warranty reserve. Engineering trade-offs that are not on the datasheet include: lot-to-lot consistency (measured as IR distribution tightness), vendor response time on field-failure claims, and vendor willingness to share root-cause analysis data. A cell vendor with slightly higher unit cost but tighter lot consistency and faster claim response is almost always the lower total-cost choice over a 3-year program.

Vendor Attribute	Weight	Scoring Method
Unit cost	25%	$/kWh
Lot consistency (IR sigma)	25%	Std dev across 10 lots
Claim response time	20%	Avg days to vendor reply
RMA pass-through rate	20%	% of validated claims paid
Joint engineering access	10%	Quarterly meeting cadence

A weighted scoring approach produces a vendor-selection decision that survives internal debate. The engineering team should update the scoring annually, because cell-vendor performance drifts year-over-year and the optimal vendor today may not be the optimal vendor next year.

FAQ: Battery Heated Clothing Warranty Engineering-Side

What is the most informative single test on a returned battery heated clothing warranty cell? Internal resistance at 1kHz AC. It diagnoses vendor-side tab-weld defects and electrolyte depletion faster than capacity testing, and it takes 10 seconds per cell.

How many cells should be 500-cycle tested per lot? At minimum 3 cells per lot for production-volume lots, 5 cells per lot for development-volume lots. The data drives the warranty reserve and the vendor pass-through claim.

What is the typical failure-mode distribution for battery heated clothing warranty claims? Cell 18%, BMS 12%, heating element 22%, connector 9%, switch 8%, sewing 14%, misuse 17%. The misuse share drops to 8-10% when the care guide is prominently delivered.

How do I distinguish BMS latch-up from cell failure? BMS latch-up is recoverable (cycle the load to clear the latch), cell failure is not (capacity drops irreversibly). A functional test on the BMS PCBA isolates the two.

What is the right cell-vendor pass-through recovery rate target? 35-50% of validated cell-failure claims. Vendors below 30% are poor partners; vendors above 60% are usually signaling too much confidence in their own product and may be over-eager on credits.

How do I structure an engineering RMA triage SOP for a small team? Run the SOP twice daily (morning + afternoon batches). Each batch handles 6-10 claims in 2.5 hours. The team closes 12-20 claims per day with a 24-hour SLA.

What is the minimum lot-traceability data I must keep? Cell date code, BMS lot code, heating-element lot code, ship date by PO, and end-user claim link. Anything less than this and the wholesale buyer’s CS team cannot scope a recall.

How do I justify the $4,200 cycler test station to leadership? Calculate the annual RMA cost reduction from tighter incoming QC. A 0.5% failure-rate improvement on a 50K-unit line at $42 RMA cost is $10,500/year in savings. The cycler pays back in 5 months.

What is the typical cycle life for a 21700 cell in heated apparel use? 800 cycles to 80% capacity when discharged at 1C continuously. In real-world heated-apparel use (intermittent discharge, partial state-of-charge), the cycle life extends to 1,200-1,500 cycles.

How do I handle a voluntary recall under UN3481 documentation? Trigger the recall within 48 hours of cluster validation. Notify wholesale buyers by email and registered letter. Coordinate return logistics with the cell vendor for joint root-cause analysis.

What is the bend-radius rule for glove heating elements? 0.8mm minimum bend radius for fine copper wire; 0.6mm for carbon fiber braid. Below these thresholds, the element fatigues and breaks at the bend apex within 6-9 months of field use.

How do I document firmware updates for warranty purposes? Maintain a firmware-version log by SKU. When a BMS firmware update is shipped, log the version, the affected lot range, and the field-failure reduction observed after the update.

What is the most common engineering mistake in battery heated clothing warranty programs? Treating the warranty program as a CS function rather than an engineering function. The CS team closes tickets; the engineering team turns tickets into reliability improvements. The split must be respected.

Conclusion: The Warranty Program as an Engineering Feedback Loop

A battery heated clothing warranty program run by an engineering team — with a 24-hour triage SOP, a 500-cycle incoming-QC test, a vendor pass-through scorecard, and a reliability-benchmark dashboard — produces a closed-loop feedback channel between field failures and the next BOM revision. The 2026-2027 OEM winners are not the ones with the cheapest cells; they are the ones whose engineering team closes the warranty feedback loop in 90 days. Build the SOP, fund the cycler, run the joint-engineering sessions, and the warranty line item becomes an engineering asset rather than a write-off.

Internal Linking Map

– Primary category: Battery Heated Apparel Factory – Secondary: Battery Heated Clothing Factory, OEM ODM Manufacturing

Glossary

BMS

Battery Management System — the electronic circuit that protects and controls a lithium-ion battery pack during charge and discharge.

FMEA

Failure Mode and Effects Analysis — a systematic method for evaluating a process or product to identify where and how it might fail.

CAPA

Corrective and Preventive Action — a structured quality-system process for addressing the root cause of detected nonconformities.

IR (Internal Resistance)

The opposition to current flow inside a battery cell, measured in milliohms (mΩ); rising IR indicates cell aging or tab-weld defects.

UN3481

IATA classification for lithium-ion batteries packed with equipment (e.g. inside a heated jacket).
